Results

Computed flow field results may be listed and/or plotted using CFPOST, as described in the CFPOST User's Guide. CFPOST may also be used to create PLOT3D xyz and q files for use as input to other post-processors, as described under "Examine the Results" in the "Tutorial" section of the Wind-US User's Guide.

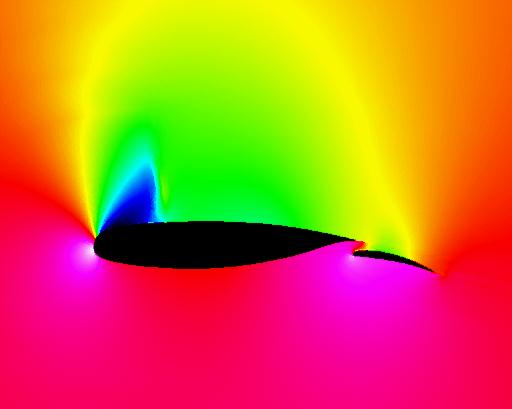

The computed static pressure field is shown below.

Figure showing computed static pressure field
