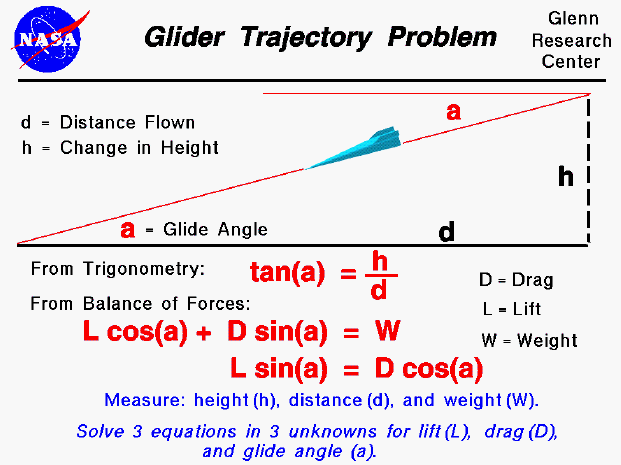

Computer drawing of a paper airplane in descending flight.
 After measuring the weight, distance flown and height dropped,
 you can determine the lift, drag and glide angle.

A glider is a special kind of aircraft that has no engine. Paper airplanes are the most obvious example, but gliders come a wide range of sizes. Toy gliders, made of balsa wood or styrofoam, are an excellent way for students to study the basics of aerodynamics. The Wright brothers perfected the design of the first airplane and gained piloting experience through a series of glider flights. These aircraft were similar to modern hang-gliders and were launched by running off a hill.

If a glider is in a steady (constant velocity and no acceleration) descent, it loses altitude as it travels. The glider's flight path is a simple straight line, shown as the inclined red line in the figure. The flight path intersects the ground at an angle "a" called the glide angle. If we know the distance flown and the altitude change, we can calculate the glide angle using trigonometry. The tangent (tan) of the glide angle (a) is equal to the change in height (h) divided by the distance flown (d).

Considering the vector balance of forces for a glider, we find that the lift (L) times the cosine (cos) of the glide angle plus the drag (D) times the sine (sin) of the glide angle is equal to the weight (W) and that the lift times the sine of the glide angle is equal to the drag times the cosine of the glide angle. With these three equations we can experimentally determine the lift and drag of a glider. If we test fly a glider (paper airplane) and measure the distance along the ground, the height at which the glider is released, we can use the first equation to give us an average value of the glide angle. With the glide angle known and a measurement of the weight, we have two remaining equations in two unknowns which can be solved for the lift and the drag.
