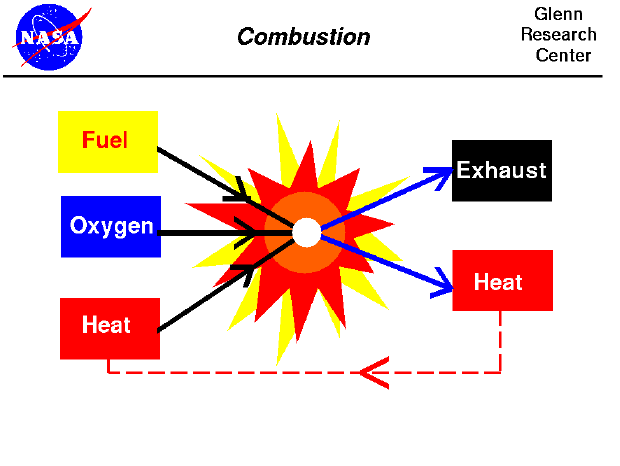

A graphic showing the process of combustion; fuel plus oxygen plus
 a source of heat combine to produce exhaust plus more heat.


To move an airplane or a model rocket through the air, we must use a propulsion system to generate thrust. Different types of aircraft use different types of propulsion devices, but all aircraft rely on some type of engine to generate power. Rocket engines, internal combustion, or piston engines, and jet engines all depend on the burning of fuel to produce power. Burning a fuel is called combustion, a chemical process that we study in middle or high school.

Because combustion is so important for aircraft and rocket propulsion, we will review the fundamentals. Combustion is a chemical process in which a substance reacts rapidly with oxygen and gives off heat. The original substance is called the fuel, and the source of oxygen is called the oxidizer. The fuel can be a solid, liquid, or gas, although for airplane propulsion the fuel is usually a liquid. The oxidizer, likewise, could be a solid, liquid, or gas, but is usually a gas (air) for airplanes. For model rockets, a solid fuel and oxidizer is used.

During combustion, new chemical substances are created from the fuel and the oxidizer. These substances are called exhaust. Most of the exhaust comes from chemical combinations of the fuel and oxygen. When a hydrogen-carbon-based fuel (like gasoline) burns, the exhaust includes water (hydrogen + oxygen) and carbon dioxide (carbon + oxygen). But the exhaust could also include chemical combinations from the oxidizer alone. If the gasoline were burned in air, which contains 21% oxygen and 78% nitrogen, the exhaust could also include nitrous oxides (NOX, nitrogen + oxygen). Exhaust usually occurs as a gas; the temperature of the exhaust is high because of the heat released. (Example: Soot is a form of solid exhaust that occurs in some combustion processes.)

During the combustion process, as the fuel and oxidizer are turned into exhaust products, heat is generated. Interestingly, some source of heat is also necessary to start combustion. (Gasoline and air are both present in your automobile fuel tank; but combustion does not occur because there is no source of heat.) Since heat is both required to start combustion and is itself a product of combustion, we can see why combustion takes place very rapidly. Also, once combustion gets started, we don't have to provide a heat source because the heat of combustion will keep things going. (Example: We don't have to keep lighting a campfire.)

To summarize, for combustion to occur three things must be present: a fuel to be burned, a source of oxygen, and a source of heat. As a result of combustion, exhausts are created and heat is released. You can control or stop the combustion process by controlling the amount of the fuel available, the amount of oxygen available, or the source of heat.
