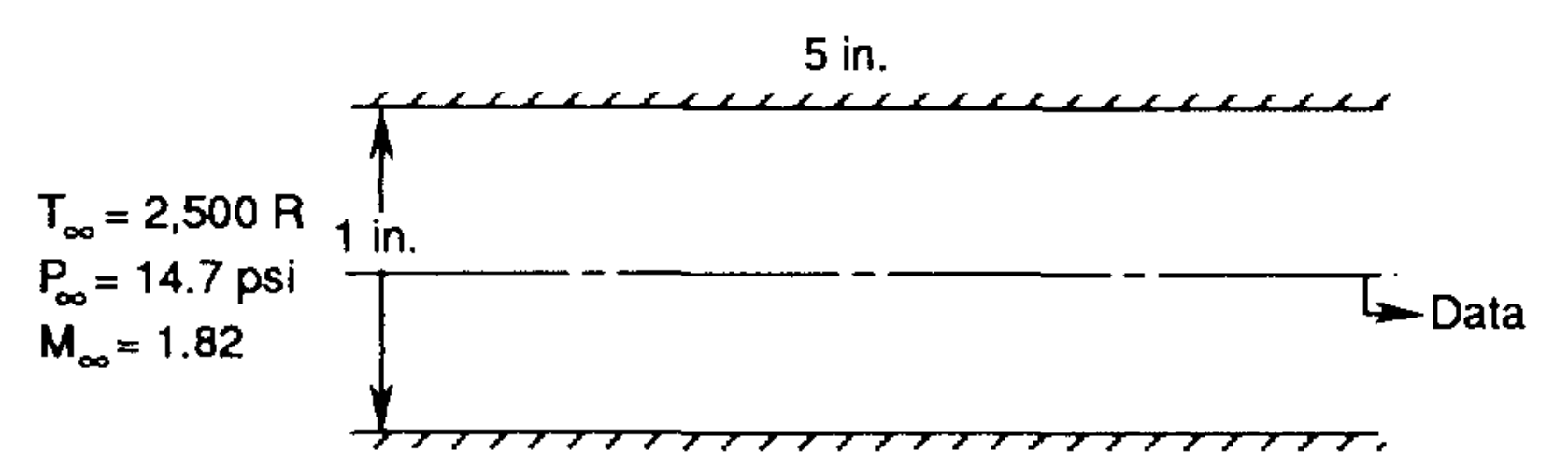

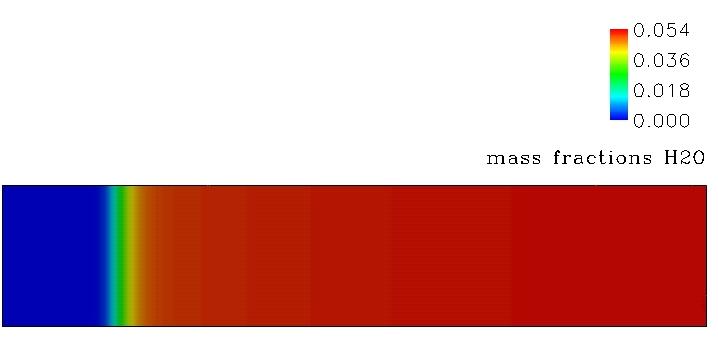

Figure 1. Flow domain and sample H20 mass-fraction contours for
the combustion in a channel.
This case examines finite-rate, hydrogen-oxygen chemical reaction occuring within a constant-area, two-dimensional channel. The length of the channel is 5.0 inches and the height is 1.0 inches. The channel schematic, from Mani et al., is presented in Figure 1.
Study | Category | Person | Comments |
---|---|---|---|
Study #1 | Unit | Teryn DalBello | 7 Species Model |
Study #2 | Unit | Teryn DalBello | 5 Species Model |
Study #3 | Unit/Validation | Manan Vyas | Wind-US version 4.107 |
NOTE: Wind is structured-only version of the code. The last release of Wind code was version 5 and is NOT supported/updated and superseded by Wind-US. Wind-US supports both, structured and unstructured meshes. While some files, options, and keywords in studies performed with Wind code might still be valid, please exercise caution and refer to the regularly updated Wind-US documentation for current options and keywords.
Mani, M., Bush, R.H., Vogel, P.G., "Implicit Equilibrium and Finite-Rate Chemistry Models For High Speed Flow Applications," AIAA Paper 91-3299-CP, Jan. 1991.
