Dynamics of Flight

What is Air?

Air is a physical substance which has weight. It has molecules which are constantly moving. Air pressure is created by the molecules moving around. Moving air has a force that will lift kites and balloons up and down. Air is a mixture of different gases; oxygen, carbon dioxide and nitrogen. All things that fly need air. Air has power to push and pull on the birds, balloons, kites and planes.

In 1640, Evagelista Torricelli discovered that air has weight. When experimenting with measuring mercury, he discovered that air put pressure on the mercury.

Francesco Lana used this discovery to begin to plan for an airship in the late 1600s. He drew an airship on paper that used the idea that air has weight. The ship was a hollow sphere which would have the air taken out of it. Once the air was removed, the sphere would have less weight and would be able to float up into the air. Each of four spheres would be attached to a boat-like structure and then the whole machine would float. The actual design was never tried.

Hot air expands and spreads out and it becomes lighter than cool air. When a balloon is full of hot air it rises up because the hot air expands inside the balloon. When the hot air cools and is let out of the balloon the balloon comes back down.

How Wings Lift the Plane

Airplane wings are shaped to make air move faster over the top of the wing. When air moves faster, the pressure of the air decreases. So the pressure on the top of the wing is less than the pressure on the bottom of the wing. The difference in pressure creates a force on the wing that lifts the wing up into the air.

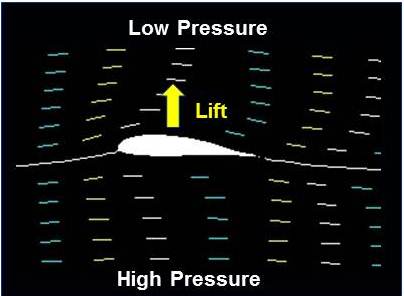

Diagram of how air flows over and under airfoil

Here is a simple computer simulation that you can use to explore how wings make lift.

Laws of Motion

Sir Isaac Newton proposed three laws of motion in 1665. These Laws of Motion help to explain how a planes flies.

1. If an object is not moving, it will not start moving by itself. If an object is moving, it will not stop or change direction unless something pushes it.


2. Objects will move farther and faster when they are pushed harder.


3. When an object is pushed in one direction, there is always a resistance of the same size in the opposite direction.

Forces of Flight

Four forces of flight


Lift - upward
Drag - backward
Weight - downward
Thrust - forward

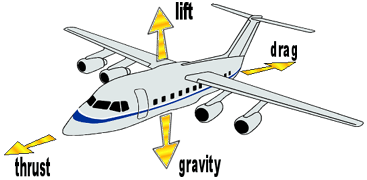

Picture of plane with four forces



Controlling the Flight of a Plane

How does a plane fly? Let's pretend that our arms are wings. If we place one wing down and one wing up we can use the roll to change the direction of the plane. We are helping to turn the plane by yawing toward one side. If we raise our nose, like a pilot can raise the nose of the plane, we are raising the pitch of the plane. All these dimensions together combine to control the flight of the plane. A pilot of a plane has special controls that can be used to fly the plane. There are levers and buttons that the pilot can push to change the yaw, pitch and roll of the plane.

To roll the plane to the right or left, the ailerons are raised on one wing and lowered on the other. The wing with the lowered aileron rises while the wing with the raised aileron drops.

Pitch makes a plane descend or climb. The pilot adjusts the elevators on the tail to make a plane descend or climb. Lowering the elevators caused the airplane's nose to drop, sending the plane into a down. Raising the elevators causes the airplane to climb.

Yaw is the turning of a plane. When the rudder is turned to one side, the airplane moves left or right. The airplane's nose is pointed in the same direction as the direction of the rudder. The rudder and the ailerons are used together to make a turn

How does a Pilot Control the Plane?

Graphical representation of the cockpit of an airplane.

Click on the Radar Display, the Direction Finder, the Altitude Indicator and the Throttle Console parts of the cockpit for a more detailed view.



Picture of plane with ailerons identified Picture of plane with rudder identified Picture of Plane with elevators identified

To control a plane a pilot uses several instruments...

The pilot controls the engine power using the throttle. Pushing the throttle increases power, and pulling it decreases power.

The ailerons raise and lower the wings. The pilot controls the roll of the plane by raising one aileron or the other with a control wheel. Turning the control wheel clockwise raises the right aileron and lowers the left aileron, which rolls the aircraft to the right.

lPicture shows plane rolling

Picture of plane in roll

The rudder works to control the yaw of the plane. The pilot moves rudder left and right, with left and right pedals. Pressing the right rudder pedal moves the rudder to the right. This yaws the aircraft to the right. Used together, the rudder and the ailerons are used to turn the plane.

Pioture shows the areas of the plane used to control the Yaw

Picture of plane Yaw



The elevators which are on the tail section are used to control the pitch of the plane. A pilot uses a control wheel to raise and lower the elevators, by moving it forward to back ward. Lowering the elevators makes the plane nose go down and allows the plane to go down. By raising the elevators the pilot can make the plane go up.

Picture shows the direction of the plane's pitch

Picture of Plane Pitch

The pilot of the plane pushes the top of the rudder pedals to use the brakes. The brakes are used when the plane is on the ground to slow down the plane and get ready for stopping it. The top of the left rudder controls the left brake and the top of the right pedal controls the right brake.

If you look at these motions together you can see that each type of motion helps control the direction and level of the plane when it is flying.

All three directional control for a plane: Pitch, Roll and Yaw



Sound Barrier

Rings of Air Around Jet

Jet Hitting the Air Waves Jet Pushing Through Air Waves to Cause Sonic Boom





Sound is made up of molecules of air that move. They push together and gather together to form sound waves . Sound waves travel at the speed of about 750 mph at sea level. When a plane travels the speed of sound the air waves gather together and compress the air in front of the plane to keep it from moving forward. This compression causes a shockwave to form in front of the plane.

In order to travel faster than the speed of sound the plane needs to be able to break through the shock wave. When the airplane moves through the waves, it is makes the sound waves spread out and this creates a loud noise or sonic boom . The sonic boom is caused by a sudden change in the air pressure. When the plane travels faster than sound it is traveling at supersonic speed. A plane traveling at the speed of sound is traveling at Mach 1 or about 760 MPH. Mach 2 is twice the speed of sound.

Regimes of Flight

Sometimes called speeds of flight, each regime is a different level of flight speed.



Picture of Seaplane

Seaplane

General Aviation (100-350 MPH).

Most of the early planes were only able to fly at this speed level. Early engines were not as powerful as they are today. However, this regime is still used today by smaller planes. Examples of this regime are the small crop dusters used by farmers for their fields, two and four seater passenger planes, and seaplanes that can land on water.

Picture of Boeing 747

Boeing 747

Subsonic (350-750 MPH).

This category contains most of the commercial jets that are used today to move passengers and cargo. The speed is just below the speed of sound. Engines today are lighter and more powerful and can travel quickly with large loads of people or goods.

Picture of Concorde Jet

Concorde

Supersonic (760-3500 MPH - Mach 1 - Mach 5).

760 MPH is the speed of sound. It is also called MACH 1. These planes can fly up to 5 times the speed of sound. Planes in this regime have specially designed high performance engines. They are also designed with lightweight materials to provide less drag. The Concorde is an example of this regime of flight.

Picture of Space Shuttle

Space Shuttle

Hypersonic (3500-7000 MPH - Mach 5 to Mach 10).

Rockets travel at speeds 5 to 10 times the speed of sound as they go into orbit. An example of a hypersonic vehicle is the X-15, which is rocket powered. The space shuttle is also an example of this regime. New materials and very powerful engines were developed to handle this rate of speed.
