MADIC 2D Axisymmetric CD Boattail Nozzle

Figure 1 is described in the surrounding text

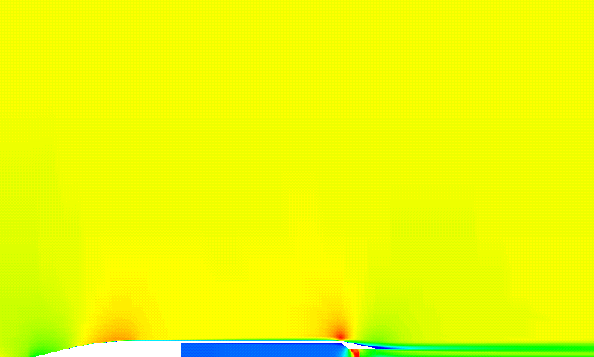

Figure 1. Pressure contours about the MADIC boattail nozzle.

Flow Description

This example was obtained from the MADIC (Multidisciplinary and Design Industrial Consortium) program and is the NASA D-1.22-L boattail/nozzle configuration which is thoroughly documented in NASA TP 1766. The conditions are a NPR(nozzle pressure ratio) of 1.5, free stream total pressure of 14.71 psia, free stream total temperature of 592 deg. R, free stream Mach Number of 0.8, and a nozzle total pressure of 14.47 psia. The Reynolds number was 306000/in.

Table 1. Freestream conditions.
Mach Pressure (psia) Temperature (R) Angle-of-Attack (deg) Angle-of-Sideslip (deg)
0.8 14.71 592.0 0.0 0.0

Geometry

The geometry is the NASA D-1.22-L boattail/nozzle configuration which is thoroughly documented in NASA TP 1766.

Computational Domain and Boundary Conditions

The domain includes a planar slice through the nozzle along with a portion of the farfield. Nozzle surfaces are no-slip, adiabatic walls.

Comparison Data

Experimental data is obtained from the reference below.

Computational Studies

Table 2. Computational studies peformed for the MADIC 2D axisymmetric CD boattail nozzle case.
Study Category Person Comments
Study #1 Example M. McClure Turbulent viscous flow computation.

References

NASA TP 1766, Investigation of Convergent-Divergent Nozzles Applicable to Reduced-Power Supersonic Cruise Aircraft, Bobby L. Berrier and Richard J. Re, December 1980.
