Wing Area
Answers
Level 2

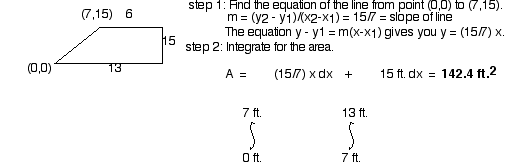

 1.

Click on the image for a detailed description

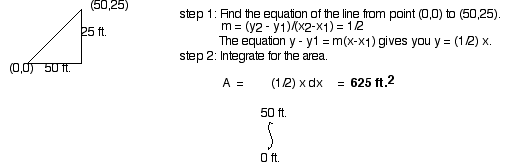

2.Click on the image for a detailed description

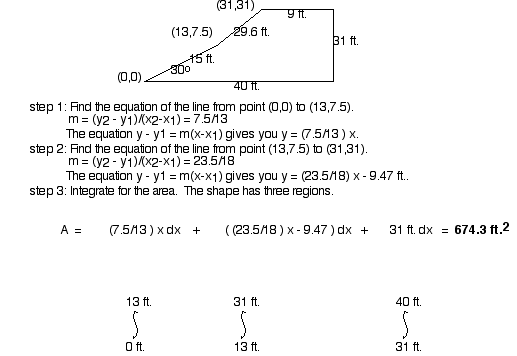

3.Click on the image for a detailed description

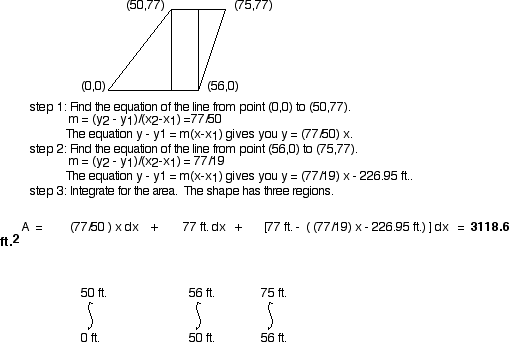

4.Click on the image for a detailed description



5.
Click on the image for a detailed description

6. Answers will vary.

7. Answers will vary.

8. Answers will vary.
