Gas Turbine Core Engine

Glenn
Research
Center

Computer drawing of gas turbine core - still picture

Button to Make Engine Button to Display Low Speed Rotation Button to Display High Speed Rotation Button to Stop Action

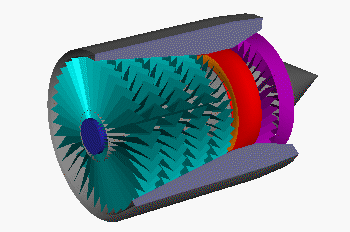

Every gas turbine engine has a combustion section (red), a compressor (cyan) and a turbine (magenta). The compressor, burner, and turbine are called the core of the engine, since all gas turbines have these components. The core is also referred to as the gas generator since the output of the core is hot exhaust gas.
