PRINT THIS ANSWER SHEET TO FILL OUT AND TURN IN.

NAME_________________________________ CLASS____________________ DATE____________

Airplane Parts Identification & FunctionsWorksheet

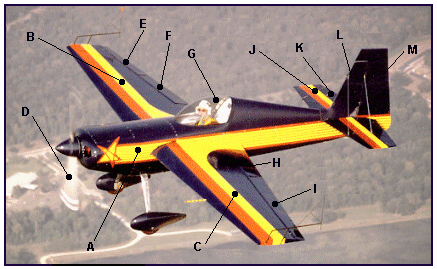

Using the letters shown on the airplane photograph above, identify the airplane parts listed below. Write both correct letters where needed.

1. wings

_________________

2. vertical stabilizer

_________________

3. fuselage

_________________

4. flaps

_________________

5. cockpit

_________________

6. propeller

_________________

7. rudder

_________________

8. ailerons

_________________

9. elevator

_________________

10.horizontal stabilizer

_________________
  1. Write the names of the three airplane parts that can be used to change the shape of the wings.

    _________________ _________________ _________________



  2. The wing generates lift because of its shape. Look at the airplane above. Which other part of the airplane, because of its similar shape, should also generate lift? _________________



  3. Look at the airplane above. Which moveable part would the pilot use to make the airplane turn to the left? _________________



  4. Which part would the pilot move in order to tip the left wing lower than the right? _________________



  5. Which part of the airplane in the picture above is generating thrust?

    _________________
