Objects with Lift


Due to IT security concerns, many users are currently experiencing problems running NASA Glenn educational applets. The applets are slowly being updated, but it is a lengthy process. If you are familiar with Java Runtime Environments (JRE), you may want to try downloading the applet and running it on an Integrated Development Environment (IDE) such as Netbeans or Eclipse. The following are tutorials for running Java applets on either IDE:

Lift is a force generated by turning a flow. Many different objects can generate a lift force and there many factors which influence the generation of lift. The left window shows a flow of air going by an object. You can select the shape of the object by using the menu button below the window. Just click on the menu button and select from the drop-menu. You can rotate the object by using the slider below the view window or by backspacing over the input box, typing in your new value and hitting the Enter key on the keyboard. On the right is a meter which measures the lift and displays it in scientific notation. You can display either the lift value (in English or Metric units) or the lift coefficient by using the choice buttons surrounding the output box.

The physical details of each of these examples are discussed on separate slides for the airplane wing, rotating cylinder, and spinning ball. In each case, the fluid passing the object is turned. And the reaction of the object is the generation of a force perpendicular to the initial flow direction. This force is called lift.

In the program at the top of this page, the velocity is constant (100 mph) and the air density is also constant and equal to the sea level, standard day value. For all the shapes except the ball, the area of the wing is the same. For the ball, the area is a smaller circular cross section. Using the program, which shape gives the greatest lift? How does lift change with increasing angle?

You can download your own copy of the program to run off-line by clicking on this button:

Button to Download a Copy of the Program

You can further investigate the lift of objects by using the FoilSim III Java Applet. You can download your own copy of FoilSim to play with for free. Here is a still slide of lifting objects:

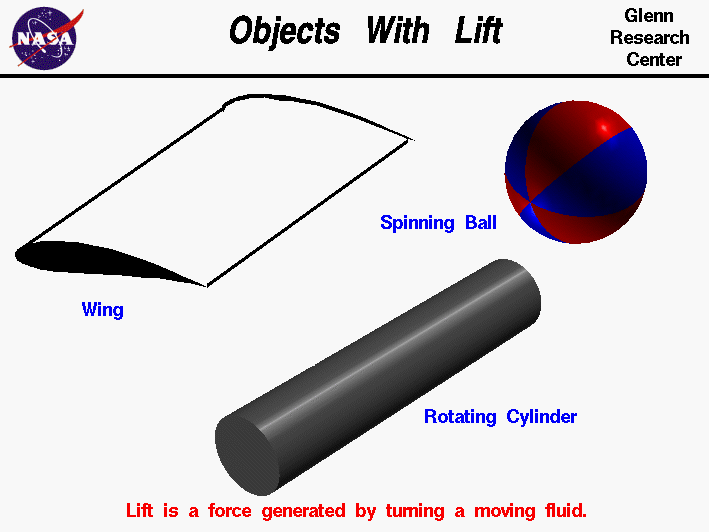

Computer picture of spinning ball, rotating cylinder and wing

Button to Display Grade K-6 Activity Button to Display Grade 6-8 Activity Button to Display Grade 6-8 Activity Button to Display Grade 6-8 Activity Button to Display Grade 6-8 Activity Button to Display Grade 9-12 Activity Button to Display Grade 9-12 Activity Button to Display Grade 9-12 Activity Button to Display Grade 9-12 Activity Button to Display Grade 11-12 Activity
