Air is a gas. Gases have various properties that we can observe with our senses, including the gas pressure, temperature (T), mass, and the volume that contains the gas. Careful, scientific observation has determined that these variables are related to one another and that the values of these properties determine the state of the gas.
The relationship between temperature and volume, at a constant number of moles and pressure, is called Charles and Gay-Lussac's Law in honor of the two French scientists who first investigated this relationship. Charles did the original work, which was verified by Gay-Lussac. They observed that if the pressure is held constant, the volume is equal to a constant times the temperature.

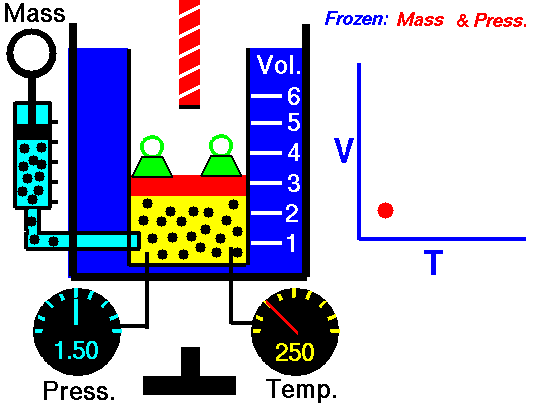

In a scientific manner, we can fix any two of the four primary properties and study the nature of the relationship between the other two by varying one and observing the variation of the other. This slide shows a schematic "gas lab" in which we can illustrate the variation of the gas properties. In the lab a theoretical gas is confined in a blue container. The volume of the gas is shown in yellow and is determined by the position of a red piston. The volume can be changed by moving the red piston using the red screw at the top of the piston. The number of moles of the gas is indicated by the number of small black "molecules" in the volume. The number of moles can be changed by injecting or withdrawing molecules using the pump at the left. There are two probes inserted into the bottom of the container to measure the pressure and the temperature. The pressure can be changed by adding or removing green weights from the top of the red piston, and the temperature can be changed by heating the container with the "torch" at the bottom.
