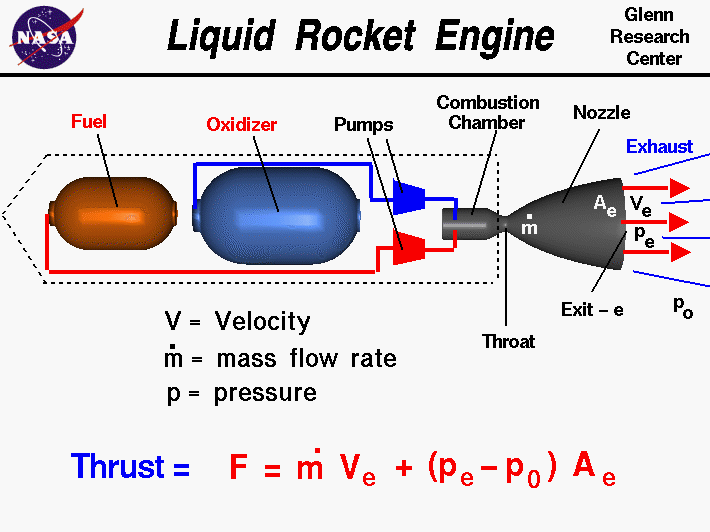

Computer drawing of a liquid rocket engine with the equation
 for thrust. Thrust equals the exit mass flow rate times exit velocity
 plus exit pressure minus free stream pressure times nozzle area.

On this slide, we show a schematic of a liquid rocket engine. Liquid rocket engines are used on the Space Shuttle to place humans in orbit, on many un-manned missiles to place satellites in orbit, and on several high speed research aircraft following World War II. In a liquid rocket, stored fuel and stored oxidizer are pumped into a combustion chamber where they are mixed and burned. The combustion produces great amounts of exhaust gas at high temperature and pressure. The hot exhaust is passed through a nozzle which accelerates the flow. Thrust is produced according to Newton's third law of motion.

The amount of thrust produced by the rocket depends on the mass flow rate through the engine, the exit velocity of the exhaust, and the pressure at the nozzle exit. All of these variables depend on the design of the nozzle. The smallest cross-sectional area of the nozzle is called the throat of the nozzle. The hot exhaust flow is choked at the throat, which means that the Mach number is equal to 1.0 in the throat and the mass flow rate m dot is determined by the throat area. The area ratio from the throat to the exit Ae sets the exit velocity Ve and the exit pressure pe. You can explore the design and operation of a rocket nozzle with our interactive nozzle simulator program which runs on your browser.

The exit pressure is only equal to free stream pressure at some design condition. We must, therefore, use the longer version of the generalized thrust equation to describe the thrust of the system. If the free stream pressure is given by p0, the thrust F equation becomes:

F = m dot * Ve + (pe - p0) * Ae

Notice that there is no free stream mass times free stream velocity term in the thrust equation because no external air is brought on board. Since the oxidizer is carried on board the rocket, rockets can generate thrust in a vacuum where there is no other source of oxygen. That's why a rocket will work in space, where there is no surrounding air, and a gas turbine or propeller will not work. Turbine engines and propellers rely on the atmosphere to provide air as the working fluid for propulsion and oxygen in the air as oxidizer for combustion.

The thrust equation shown above works for both liquid and solid rocket engines. There is also an efficiency parameter called the specific impulse which works for both types of rockets and greatly simplifies the performance analysis for rockets.

The details of how to mix and burn the fuel and oxidizer, without blowing out the flame, are very complex. It DOES take a rocket scientist to figure it out!
